| 端口數 |

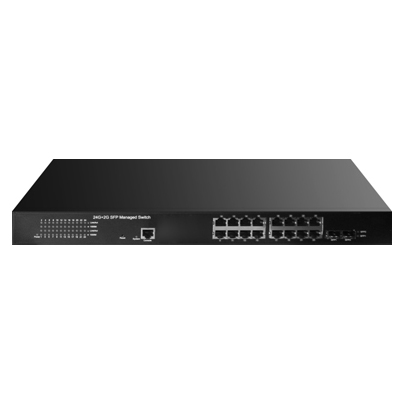

16 10/100/1000M RJ-45 MDI/MDI-X port(Including 8 POE port), 2 1000MSFP 1 Console RJ45 |
| Flash | 32MB |
| SDRAM | 128MB |
| 包轉發率 | 26.8Mpps |
| 背板帶寬 | 36Gbps |
| 交換模式 | Store-and-Forward |
| MAC地址表 | 8K |
| queue buffer | 4MB |
| 機殼尺寸 | 440*220*44 (mm) |
| 電源輸入 | AC100-240V |
| LED | power 、system、Link/Act、100M、1000M |
| 使用環境 |
工作溫度： 0℃～50℃；工作濕度10％～90％不凝結 存儲溫度： -40℃～70℃；存儲濕度5％～90％不凝結 |
|
VLAN |
Port base VLAN ACCESS VLAN TRUNK VLAN HYBRID VLAN 802.1Q tagged VLAN Max. 4094 VLAN |
| IGMP Snooping |
IGMP v1/v2 Snooping Support 256 groups |
|
MAC address administration |
MAC address display/inquire Static MAC settings Dynamic MAC address administration MAC address filtering |
| Loop detection | Support loop detection |
| storm control | Broadcast/Multicast/Unknown Unicast Storm Control |
| Link Aggregation |
maximum 8 port per group, support 16 group LACP dynamic or static aggregation |
| Access control |
Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control. Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control |
| Security feature |
VLAN port isolation Port +MAC+IP binding |
| Port Mirroring |
- One-to-one - Many-to-one -By mirroring port transmission, receiving and sending and receiving data |
| network management |
Telnet CLI WEB (IP:192.168.1.200 ,username/password: admin/admin) |
| Port speed limit | Egress and ingress speed limit |
| DHCPSNOOPING | Prevent illegal DHCP server |
| Loop detection | Detection of Ethernet loop |
| ARP attack prevention |
To prevent the ARP request deception To prevent the ARP reply to cheat |
| Jumbo Frames | 10K |
|
SNMP |
SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907 The MIB II;conform to RFC1213 Ethernet MIB;conform to RFC1643 The bridge MIB;conform to RFC1493 |
|
RMON | Support group 1, 2, 3, 9 |
| Equipment management |
Console Telnet The CLI interface WEB UI Support the ping Check the CPU and memory utilization one key to collect fault |
